Small Hydralic Pump UP-35RH series
Special tank structure to stop oil leaks enable users to take it everywhere. 35RH pumps (Maximum
Operating Pressure:70Mpa & the lightest) exports have grown in recent years, especially to America,
Asia and Europe.
| Model | Electric Motor | Mortor kW (2,000rpm) | Voltage(AC) 50Hz/60Hz | Amps | Output Flow Rate(Lpm) | Oil Volume (litres) | ||
| 1Mpa(10Bar) | 70Mpa(700Bar) | Tank | Effective | |||||
| UP-35RH Series | Commutator, Single phase | 0.35 | 220/230 | 4.5 | 2.0 | 0.2 | 1.0 | 0.8 |
| 100/110 | 9.0 | |||||||
| UP-35RHL (Large Tank) | 220/230 | 4.5 | 2.0 | 1.6 | ||||
| 100/110 | 9.0 | |||||||
UP-35RH NC
Cylinder type：Single Acting
＜Weight (kg)＞ Normal(1L) tank:7.5／Large(2L) tank:8.7
Advance : When ON switch is pressed, then the motor starts. When ON switch is released, the cylinder can be stopped and hold.
Retraction : When OFF switch is pressed, the cylinder retracts at once. Cylinder cannot be stopped on retraction.
UP-35RH NO
Cylinder type：Single Acting
＜Weight (kg)＞ Normal(1L) tank:7.5／Large(2L) tank:8.7
Advance : When ON switch is pressed, then the motor starts as well as a cylinder extends.
Retraction : When ON switch is released, the cylinder automatically retracts at once. The cylinder cannot be stopped on retraction. There is no "OFF" button.

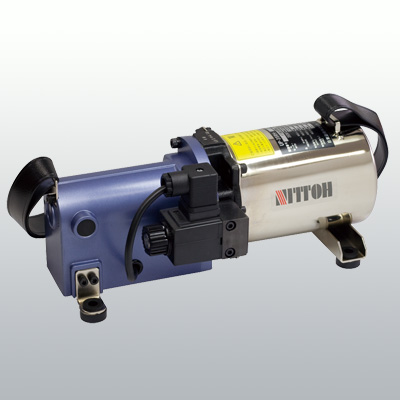

UP-35RH IN
Cylinder type：Single Acting
＜Weight (kg)＞ Normal(1L) tank:7.8／Large(2L) tank:9.0
Advance : When ON switch is pressed, then the motor starts. When ON switch is released, the cylinder can be stopped and hold on advance.
Retraction : When OFF switch is pressed, then the cylinder starts to retract. When OFF switch is released, the cylinder can be stopped on retraction.
UP-35RH 2M/2ML
Cylinder type：Single Acting
＜Weight (kg)＞ Normal(1L) tank:8.5／Large(2L) tank:9.7
Advance : When ON switch is pressed, then the motor starts as well as a cylinder extends.
Retraction : By turning the release valve to the left by finger, the oil in the cylinder returns to the tank. The cylinder can be stopped on retraction.
UP-35RH 4M/4ML
Cylinder type：Double Acting
＜Weight (kg)＞ Normal(1L) tank:8.5／Large(2L) tank:9.7
Advance : When the lever is A, pressing ON of the operation switch rotates the motor and oil flows to the A port. At this time, the B port oil is drained to the tank.
Retraction : When the lever is B, pressing ON of the operation switch rotates the motor and oil flows to the B port. At this time, the A port oil is drained to the tank..
More details
You can combine UP-35RH pumps with multiple hydraulic tools on various occasions.
Large automakers such as TOYOTA, HONDA, ISUZU use our UP-35RH pumps as hydraulic power source for jacking up, wire cutting, pressing steel and so on at their factory.
Our pumps are widely used for replacement and pulling old water pipes at house, apartment, office and factory.
Sesami oil / Cammellia oil manufacturers also use hydraulic oil press to expel oil, which is conventional method.
In Denmark, our products are chosen as hydraulic power source for changing the wind power propellers.
